All drives shown as detached

Support
1

After a reboot all drives are shown as detached.
In the concole I can list the files of the atteched disks.

For one testdisk the name fits but not the size and serial.

I’m not using raid. Rockstor version: 4.6.1-0

If I try to delete a pool, I get the info, that all data will be lost.

The web UI didn’t finds new disks.

How could I refind the drives?

Thanks.

Kelte

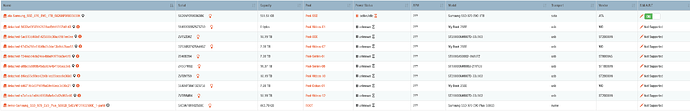

2025-06-09 16_15_42-Rockstor – Mozilla Firefox
2025-06-09 16_15_42-Rockstor – Mozilla Firefox3550×573 152 KB

lsblk -P -o NAME,MODEL,SERIAL,SIZE,TRAN,VENDOR,HCTL,TYPE,FSTYPE,LABEL,UUID

NAME=“sda” MODEL=“TOSHIBA MG10AFA22TE” SERIAL=“3480A03YFM8J” SIZE=“20T” TRAN=“usb” VENDOR=“TOSHIBA " HCTL=“8:0:0:0” TYPE=“disk” FSTYPE=”" LABEL=“” UUID=“”
NAME=“sdb” MODEL=“ST22000NM001E-3HM103” SERIAL=“ZX23Y99W” SIZE=“20T” TRAN=“usb” VENDOR=“ST22000N” HCTL=“9:0:0:0” TYPE=“disk” FSTYPE=“btrfs” LABEL=“Pool-Serien-02” UUID=“fc39dac0-cfcf-41e6-b560-315e088f0a36”
NAME=“sdc” MODEL=“TOSHIBA MG10AFA22TE” SERIAL=“2490A08MFM8J” SIZE=“20T” TRAN=“usb” VENDOR=“TOSHIBA " HCTL=“10:0:0:0” TYPE=“disk” FSTYPE=“btrfs” LABEL=“Pool-Videos-01” UUID=“14692784-37bb-4c18-a656-bc2c1c0896a3”
NAME=“nvme0n1” MODEL=“SKHynix_HFS256GEJ9X113N” SERIAL=“4YC7N00481040760R” SIZE=“238.5G” TRAN=“nvme” VENDOR=”" HCTL=“” TYPE=“disk” FSTYPE=“” LABEL=“” UUID=“”
NAME=“nvme0n1p1” MODEL=“” SERIAL=“” SIZE=“2M” TRAN=“nvme” VENDOR=“” HCTL=“” TYPE=“part” FSTYPE=“” LABEL=“” UUID=“”
NAME=“nvme0n1p2” MODEL=“” SERIAL=“” SIZE=“64M” TRAN=“nvme” VENDOR=“” HCTL=“” TYPE=“part” FSTYPE=“vfat” LABEL=“EFI” UUID=“1381-2428”
NAME=“nvme0n1p3” MODEL=“” SERIAL=“” SIZE=“2G” TRAN=“nvme” VENDOR=“” HCTL=“” TYPE=“part” FSTYPE=“swap” LABEL=“SWAP” UUID=“ee6de8d5-eb1c-4d19-943c-0d24ecee92a7”
NAME=“nvme0n1p4” MODEL=“” SERIAL=“” SIZE=“236.4G” TRAN=“nvme” VENDOR=“” HCTL=“” TYPE=“part” FSTYPE=“btrfs” LABEL=“ROOT” UUID=“46befa9e-b399-480d-b10d-338a4c875615”

df -h

Filesystem Size Used Avail Use% Mounted on
/dev/nvme0n1p4 237G 3.8G 233G 2% /
devtmpfs 4.0M 8.0K 4.0M 1% /dev
tmpfs 3.7G 16K 3.7G 1% /dev/shm
efivarfs 192K 161K 27K 86% /sys/firmware/efi/efivars
tmpfs 1.5G 9.3M 1.5G 1% /run
/dev/nvme0n1p4 237G 3.8G 233G 2% /.snapshots
/dev/nvme0n1p4 237G 3.8G 233G 2% /boot/grub2/i386-pc
/dev/nvme0n1p4 237G 3.8G 233G 2% /home
/dev/nvme0n1p4 237G 3.8G 233G 2% /boot/grub2/x86_64-efi
/dev/nvme0n1p4 237G 3.8G 233G 2% /opt
/dev/nvme0n1p4 237G 3.8G 233G 2% /root
/dev/nvme0n1p4 237G 3.8G 233G 2% /srv
/dev/nvme0n1p4 237G 3.8G 233G 2% /tmp
/dev/nvme0n1p4 237G 3.8G 233G 2% /usr/local
/dev/nvme0n1p4 237G 3.8G 233G 2% /var
/dev/nvme0n1p2 64M 2.4M 62M 4% /boot/efi
tmpfs 758M 4.0K 758M 1% /run/user/0
/dev/sdb 21T 11T 9.8T 52% /mnt2/Pool-Serien-02
/dev/sdc 21T 20T 102G 100% /mnt2/Pool-Videos-01

<code
btrfs dev stats /mnt2/Pool-Videos-01

[/dev/sdc].write_io_errs 0
[/dev/sdc].read_io_errs 0
[/dev/sdc].flush_io_errs 0
[/dev/sdc].corruption_errs 0
[/dev/sdc].generation_errs 0

<code
btrfs fi show

Label: ‘ROOT’ uuid: 46befa9e-b399-480d-b10d-338a4c875615
Total devices 1 FS bytes used 3.77GiB
devid 1 size 236.41GiB used 6.05GiB path /dev/nvme0n1p4

Label: ‘Pool-Serien-02’ uuid: fc39dac0-cfcf-41e6-b560-315e088f0a36
Total devices 1 FS bytes used 10.27TiB
devid 1 size 20.01TiB used 10.33TiB path /dev/sdb

Label: ‘Pool-Videos-01’ uuid: 14692784-37bb-4c18-a656-bc2c1c0896a3
Total devices 1 FS bytes used 19.91TiB
devid 1 size 20.01TiB used 20.00TiB path /dev/sdc

2

@Kelte, welcome to the Rockstor community.

That first detached disk shows 0 bytes, compared to all of the other detached disks, was that disk removed at some earlier time (before the reboot) but not removed from the pool it belonged to?

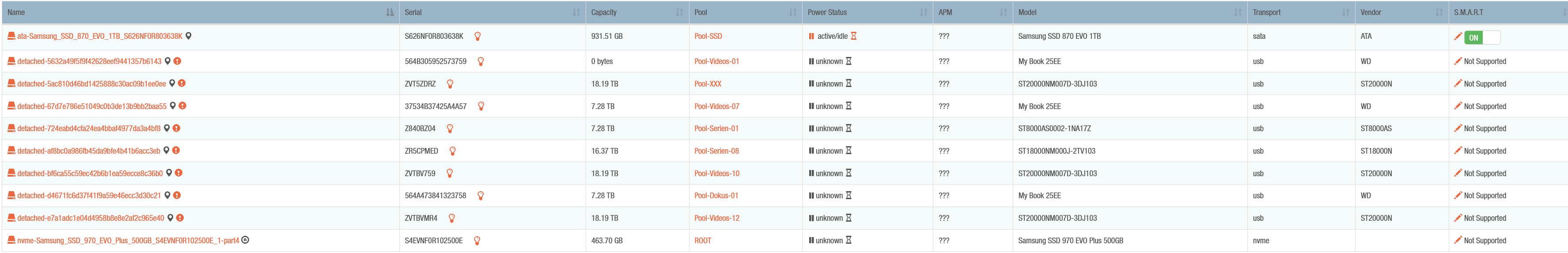

image2637×73 21.7 KB

Re:

So for each of the pools you still have a mount point under /mnt2/ to get to the files?

And if you can get to the disks’ contents it also means that you don’t seem to have any connectivity issues (disk cables/connectors, etc.), so that’s good, but would likely have been the easier fix :frowning:

1 Like
